The World’s first Laser Tracking System for Amateur and Professional Snooker Tournaments

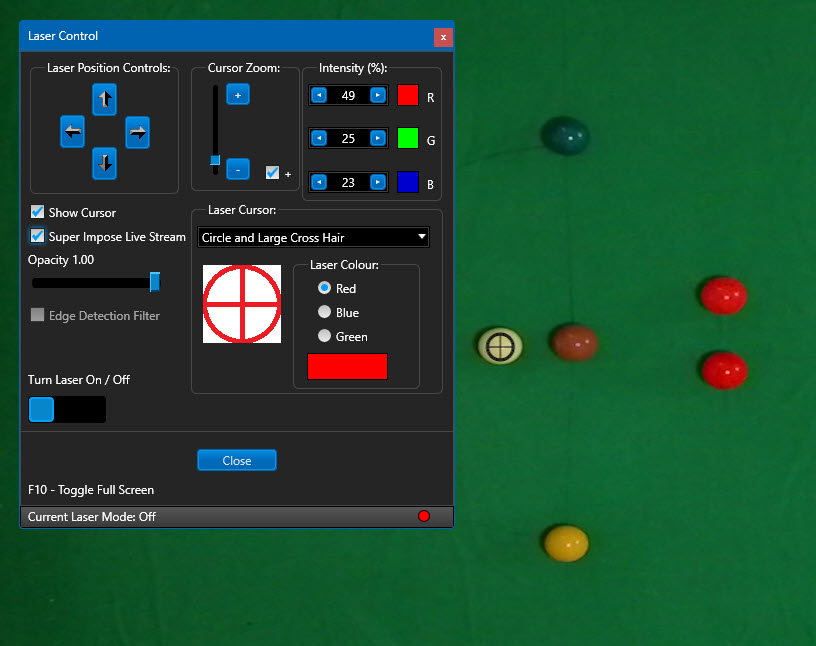

Find the ball position
Roll the ball into place

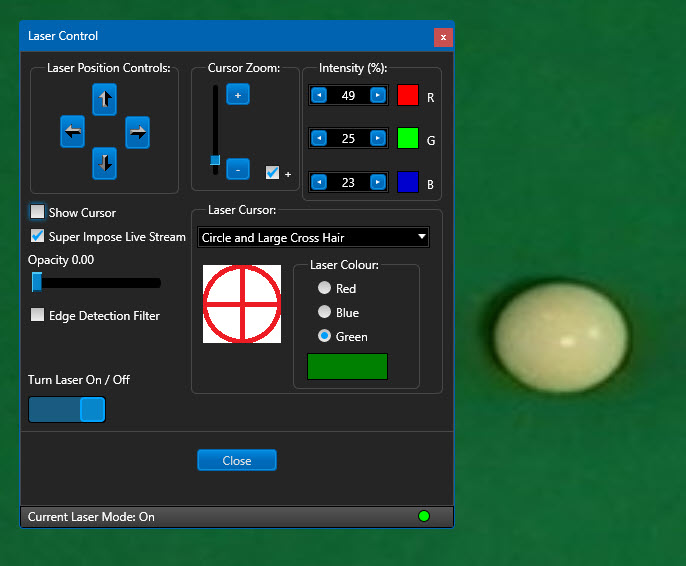

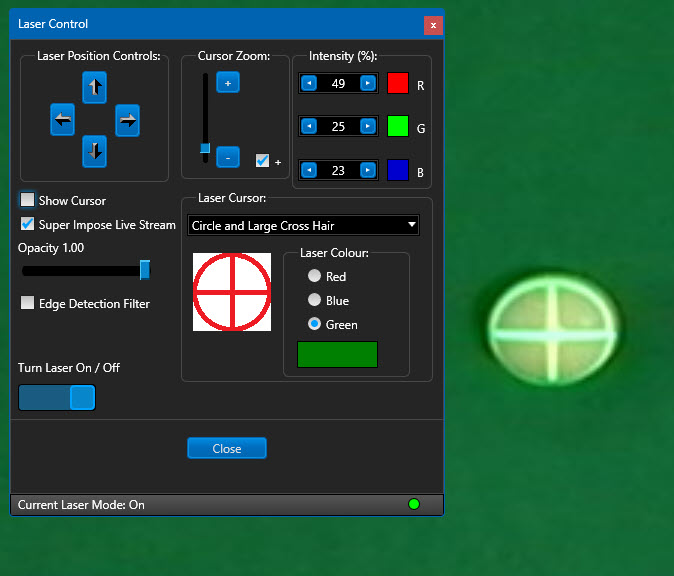

Signal the ball is in the correct position
previous arrow
next arrow

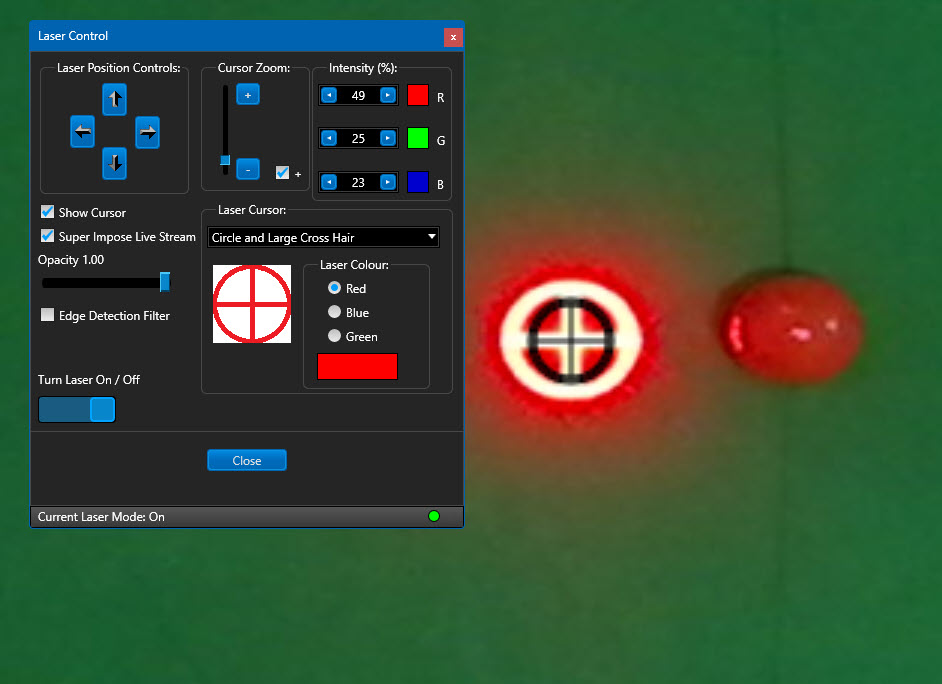

Snooker Tracker FMX is a hardware and software solution that works with a video camera and either 1 or 2 lasers mounted above a standard 12′ X 6′ Snooker table.  The camera records the position of the balls at all times. When a foul and a miss is declared or play is interrupted and the balls need to be re spotted, the laser will draw circles in the exact position where the balls need to be placed.

Other Features

  • Optional recording of all play to movie files including pausing for mid session intervals
  • Internal 10 minute video buffer and easy scrolling to locate desired snapshot reference
  • Support for English, French, German and Simplified Chinese
  • Internal database for taking snapshots from the camera

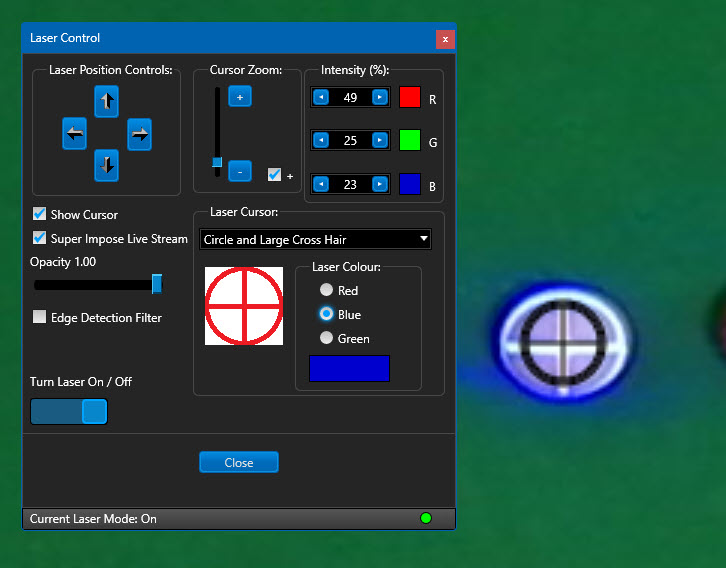

  • 6 different laser cursors
  • Superimposing the live camera feed overtop of a snapshot for better accuracy
  • Digital Camera Zoom up to 6 x
  • Built in HTML Help to assist new users

Snooker Tracker FMX will require the end user purchasing a Microsoft Windows computer with the following specifications:

  • Windows 10 or 11 Professional 64 Bit (Desktop Computer is preferred)
  • 32 GB RAM (We suggest 64 GB if recording play action to a video file.)
  • Intel Corei7 or Core i9 with at least 8 CPU cores.
  • Built in Gigabit Ethernet network connection
  • At least 1080p graphics card and monitor

Calibration is very easy

Once the system is installed and calibrated to your environment, the calibration parameters are stored in the computer and will never need to be calibrated unless the camera or table is moved.

Calibration is automatic and very easy to perform.
